Visilite for Evo 2/3

Fibre optic illumination system for evolution helmets: EVO®2, EVO®3, EVO®5 & EVOLITE®

Instructions for Use

• To turn the VisiliteTM on, push power button once
• To change mode push power button once for Slow Flash, again for Fast Flash, and again for Off
• For instructions on charging, see instruction leaflet included with product

VisiliteTM Modes & Runtimes

• Mode 1: Static (9hrs Approx.)
• Mode 2: Slow Flash (190hrs Approx.)
• Mode 3: Fast Flash (150hrs Approx.)

Features & Benefits

• Function: Static-Slow Flash-Fast Flash-Off
• Battery: Rechargeable lithium-ion battery (3.7V - 130mA)
• Visible up to 50m distance in independent tests
• USB rechargeable from PC, mains or car. Chargeable while fitted to helmet
• VisiliteTM is durable with an International Protection (IP) rating of IP54 to keep out dust, dirt and water
• Operating temperature range of +50°C to -10°C

VisiliteTM Materials

• ABS casing
• TPU (Thermoplastic Polyurethance)

Cleaning & Maintenance

• Wipe clean with damp cloth
• Do not use solvents or abrasive cleaners
• Charge in accordance with User Instructions

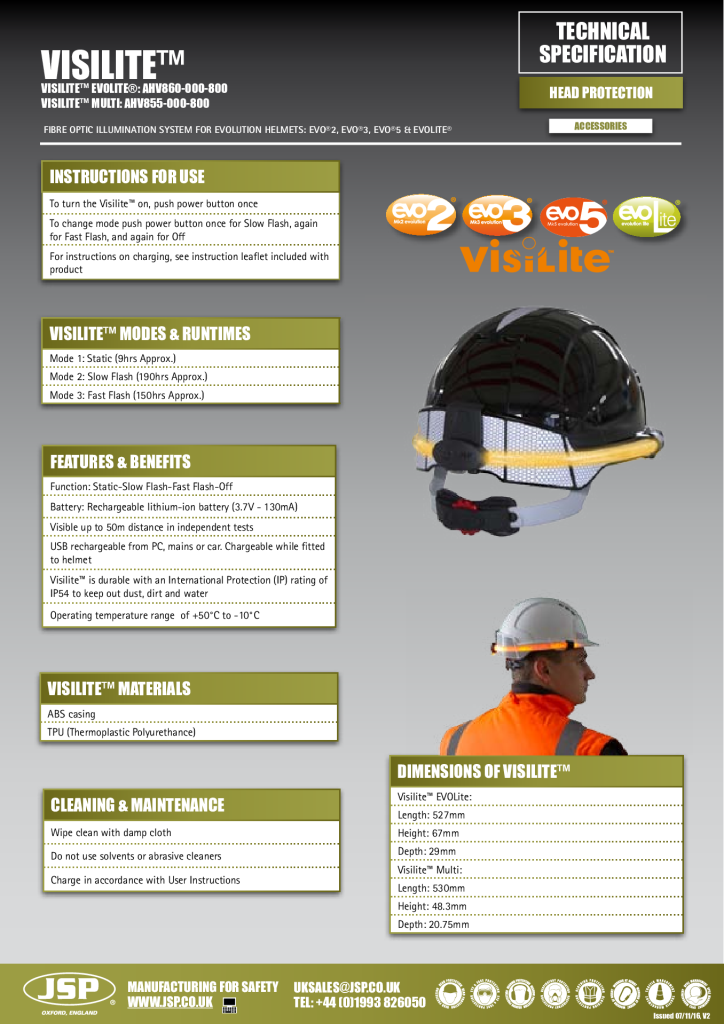

Technical Specifications
